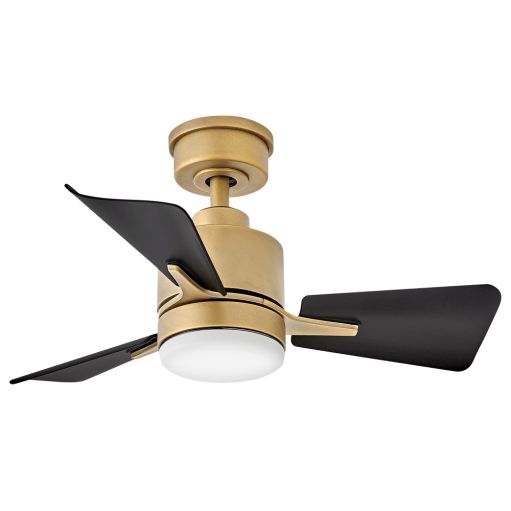

Atom 30" LED Fan
906030FHB-LDA
MSRP
$334.88
Hinkley Ceiling Fans are available for online purchase through these premium online partners.
Part of the Regency Series, Atom’s compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Operated by the HIRO control, the 3-speed AC motor can be WiFi enabled with the purchase of an additional control accessory.Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4”.
- Finish: Heritage Brass
- Glass: Etched Opal
- Height: 13.25"
- Width: 30"
- Blade Material: Composite
- Finish: Heritage Brass
- Glass: Etched Opal
- Height: 13.25"
- Width: 30"
- Voltage: 120v
- Blade Material: Composite
- Motor Type: AC
- Blade Count: 3
- Slope Degree: 20
- Light Source: Integrated LED
- LED Name: EL16W2835 - Integrated Warm Dim LED
- LED Color Temp: 3000
- LED Lumens: 1320
- LED CRI: 90
- Incandescent Equivalency: 1 x 100w
- LED Lifespan: 50,000 hrs
- Dimmable: Yes - CL Type Dimmer (SSL7A)
Features
- Classic, elegant lines and timeless details enhance a traditional space
- This item includes a 4.5" down rod (other lengths of down rods are available)
- Light kit cover included
- Damp Rated; Suitable for bathrooms and other interior spaces only
- Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
- Can be hung on a sloped ceiling
- LED components carry a 5-year limited warranty
- Part of the Regency Series of traditional ceiling fans designed to enhance a wide variety of spaces with versatile designs and classic finishes
- Fan Control included, HIRO Control - 3 Speed Reversing
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Dual Mount design can hung directly to the canopy or with an included downrod
- Motor carries a lifetime warranty
- Fans should be installed at a minimum of 7 feet from the floor
- Includes down rods: 1-4.5"
- Canopy: 6" Dia.
- UPC Code: 640665025446
- Minimum Height: 10
- Housing Diameter: 6.75
- Ceiling to Blade Height: 10
- Blade Pitch: 13
- Blade Sweep: 30
- Weight: 13.23
- Slope Degree: 20
|
Performance Specifications |
Standard | Dual Mount | ||
|---|---|---|---|---|
| High Speed | Average Speed | High Speed | Average Speed | |
| Airflow | 2845 | 2114 | 2314 | 1690 |
| EnergyUse | 54.8 | 36 | 47 | 30 |
| EnergyCost | 15.36 | 10 | 13.18 | 9 |
| Efficiency | 52 | 59 | 49.2 | 56 |
| AMPS | 0.46 | 0.34 | 0.43 | 0.32 |
| RPMS | 234 | 174 | 223 | 100 |
